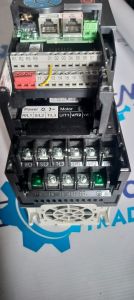

Allen Bradley VFD 25B-D010N104 Powerflex 525 5 HP, AC 3PHASE Tested Okay

ALLEN-BRADLEY 25B-D010N104 Ser A Power Flex 525 AC Drive FW 7.001 4.0Kw/5.0Hp

Allen-bradley 25B-D010N104

Allen-bradley

A-B

Ethernet/Ip

Power Flex 525

Cat: 25B-D010N104

Series: A

Fw: 7.001

Ip20/Ul Open-type (Rated -20°C To 50°C Ambient)

Ip20/Ul Open-type With Top Fan Kit Installed (Rated -20°C To 70°C Ambient)

Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit

(Rated -20°C To 45°C Ambient)

Power: 4.0Kw/5.0Hp

Input: 3 Phase, 380-480V, 47-63Hz

Ac Voltage Range: 323-528

Output: 3 Phase, 0-500Hz

Ac Voltage Range: 0-460

Continuous Amps: 10.5

60 Sec Ovld Amps: 15.75

Short Circuit Current: 100Ka

Power Terminal Wire

Use 75°C Cu Wire (Use 90°C Cu Wire If Greater Than 50°C Ambient)

2.1Mm2 - 8.4Mm2 (14-8 Awg)

Torque 1.96Nm (17.4 In-lbs)

Pn-164069

2083541

E59272

Ii (2) Gd

Tuv 12 Atex 7199 X

Ie2 43.6%

Power Module

Cat No: 25B-d010N104
